CAVITY PART MACHINING

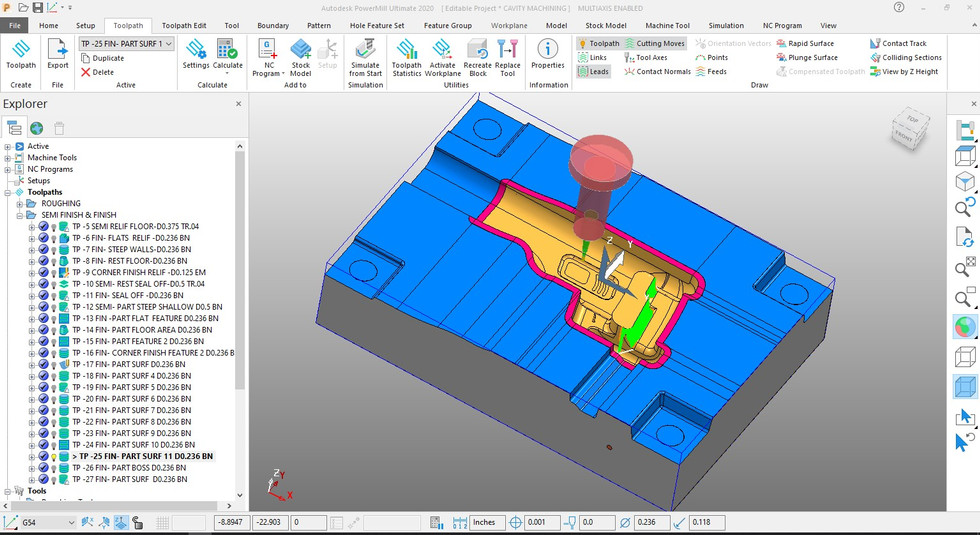

Using constant Z, steep & shallow, raster and 3D offset strategies the core part was fully machined. The core part had some region where bigger tool almost cleared all the material but then rest of the part was finished by all the above mentioned strategies. Some regions could not be able to get machined using vertical machine head settings so, some of the areas were finished using multi axis option enabled.

•

  TP-12-SEMI-PART-D0.5BN

•

  TP-13-FIN-PART FLATS-D0.236BN

•

  TP-14-FIN-PART FLOOR-D0.236BN

•

  TP-15-FIN-PART FEATURED0.236BN

•

  TP-16-FIN-PART CORNER-D0.236BN

•

  TP-17-FIN-PART SURFACED0.236BN

•

  TP-18-FIN-PART SURFACED0.236BN

•

  TP-19-FIN-PART SURFACED0.236BN

•

  TP-20-FIN-PART SURFACED0.236BN

•

  TP-21-FIN-PART SURFACED0.236BN

•

  TP-22-FIN-PART SURFACED0.236BN

•

  TP-23-FIN-PART SURFACED0.236BN

•

  TP-24-FIN-PART SURFACED0.236BN

•

  TP-25-FIN-PART SURFACED0.236BN

•

  TP-26-FIN-PART BOSSD0.236BN

•

  TP-27-FIN-PART SURFACED0.236BN
