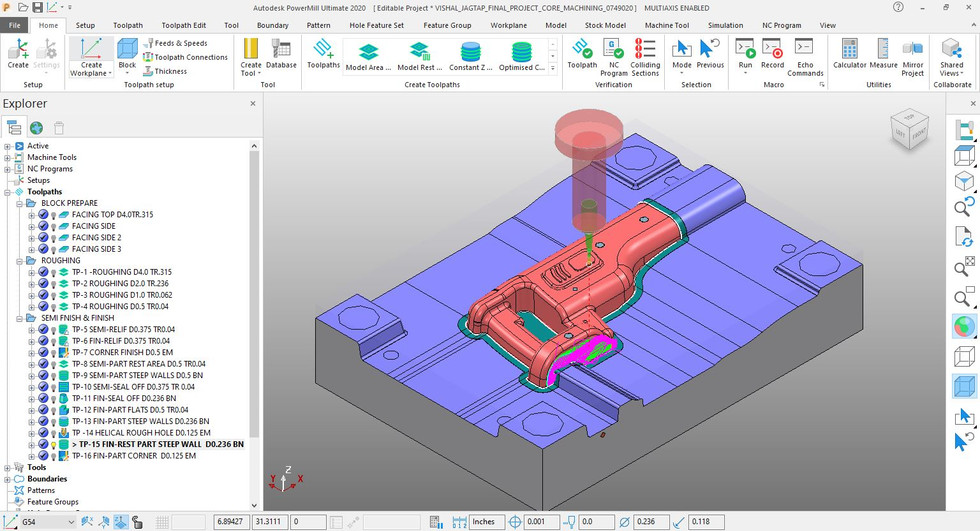

CORE PART MACHINING

Using various strategies such as constant Z, optimized constant Z, Raster and corner pencil finishing , to finish the main core body part. First two strategies are semi-finishing the part and other are removing the leftover stock and finishing the component.

TP-8-SEMI-Part D0.5 TR0.04

TP-9-SEMI-STEEP AREA D0.5BN

TP-12-FIN FLATS D0.5

TP-13-FIN STEEP WALLS D0.236BN

TP-14- HOLE FIN D0.125

TP-15 STEEP WALL FIN D0.236BN

TP-16-FIN CORNER D0.125
