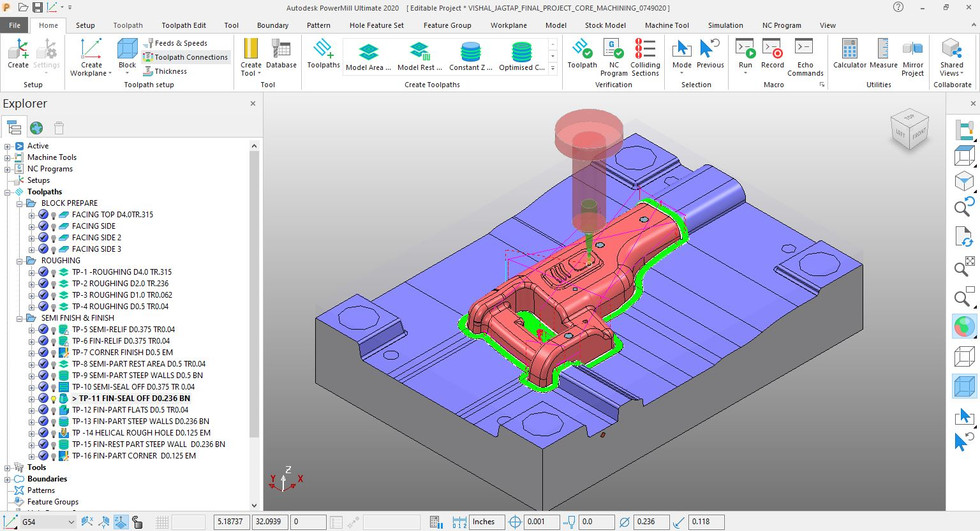

SEAL OFF MACHINING

Seal off is the area which touches the other half of the core/cavity and rest part of the mold is relived or reduced. Using Raster finishing the extra material was roughed out and the final finishing was done using 3D offset toolpath an

TP-10-SEMI-SEALOFF D0.375

TP-11-FIN-SEALOFF D0.236BN

d 0.236D ball nose endmill.
